Seeder for sowing vegetable seeds SOM 4/1 (BBA 94 mm) |
| EQUIPMENT FOR MOTOR CULTIVATORS | Seeder for sowing vegetable seeds SOM 4/1 (BBA 94 mm)
| | (4-rows for motor cultivator) Technical description. Technical description and operating instruction is intend for learning seeder and rules of it operating (using, technical maintains, transportation and storage) by a tractor driver, mechanic and others service staff. Technical description and operating instruction is conclude a short description, peculiarity of construction and main technical data of seeder SOM 4/1 (BBA 94 mm).

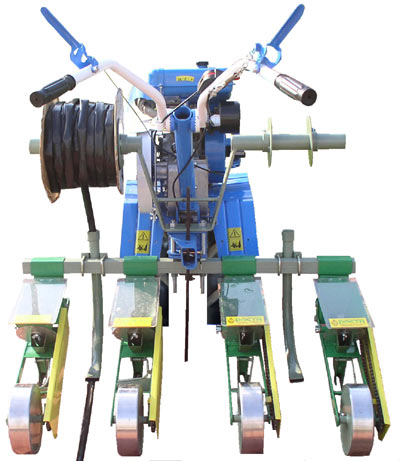

Four-row seeder is used for row sowing of vegetable and melon cultures.
Seeder provide row sowing of vegetable seeds. Seeder can be complete with drip line packing and bobbin holder. | | | | | | | | | | Technical description | | | | Aggregate,Hp | motor cultivator МБ-2К, Zirka | | Type | Hinge | | Recommend speed of moving, km\h | 2-3 | | Type of hanging up | radial single-support | | Working dimensions, mm | | | Width | 1040 | | Height | 400 | | Length | 760 | | Type of sowing unit | bush-type | | Damage of seeds not more than, % | 1,8 | | Type of ploughshare | tipping carinate | | Capacity of seeds bunker, dm3 | 2,0 | | Type of covering knife | lamellar | | Depth of sowing seeds, sm | 1…5 | | Distance between rows, mm | 200-350 | | Type of transmission mechanism | chain-type | | Diameter of slots in the sowing disc, mm | 2,2-9 (13 slots.) | | Drive | driving wheel | | Mass, kg | 65 | | It can be completed by request of consumer with the: | | | Bobbin holder, unit | 1 | | Device for placing irrigation drip line, unit | 2 | | | | | | | | | | | | Photo in the work | | | | | | | | Video | | | | | | | |
|
